| Contacts Numbers | 2 | 3 | 4 | 5 | 3+2 | 3+4 | 6 | 7 | 8-12 |
| Voltaga Rating | 250V | 250V | 250V | 250V | 60V | 60V | 250V | 100V | 100V |
| Current Rating | 16A | 16A | 12A | 8A | 6+2A | 6+2A | 15A | 5A | 5A |
Description of 2 to 4 Pole Connector
Screw locking waterproof connector is a great choice for your
application, thanks to its thread locking structure, the protection
level could meet IP68. If you are looking for IP68 waterproof
connectors, screw locking K19 connectors will be a perfet option.
it is widely used in many application.
| Operation Parameters |
| Voltage Rating | 250VAC max |
| Current Rating | 16A max |
| Min Wire Size OD | 3.0mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 10mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 2.5mm2 |
Features:
- Rated current: 20A/10rms.
- 2-4PIN power supply, 5-9PIN signal is optional.
- IP67/68 rating
- Voltage rating: 300V
- Cable Range: 3~11mm
- UL, TUV, CB, CCC, CE, RoHS approved
Main characteristics
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
Applicaiton of Bett K19 Connectors
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types
waterproof connector cable.Most of our connector is customized.We
foucs on LED Waterproof connector,Assembly waterproof
connector,Over-mold waterproof connector,T waterproof connector,Y
customized waterproof connector.
2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost
of sample will be refunded after further order.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before
delivery.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small
quantity.

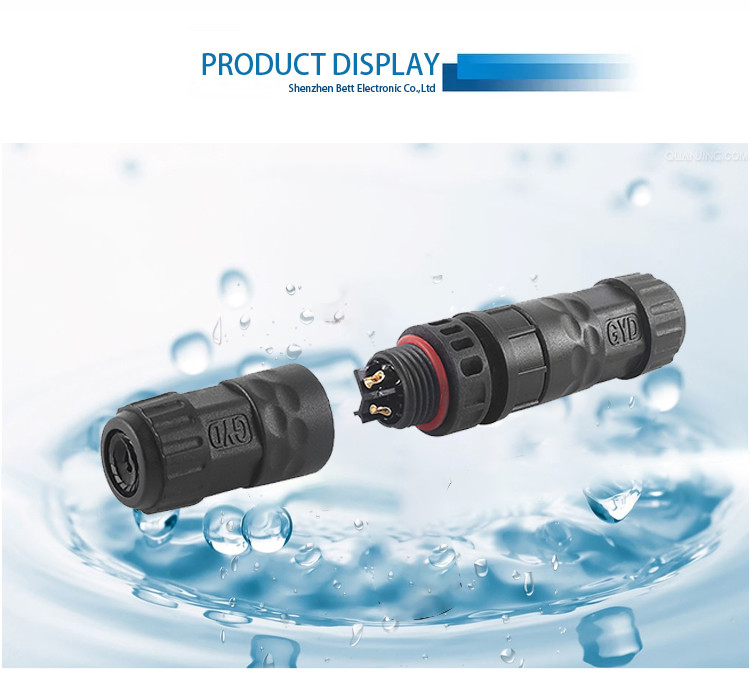

Product Display
Qualifiaction Certification
