    M19 Male And Female LED Lighting Connectors Plug-In Terminal Blocks For Industrial Equipment Plugs

    Ask Lasest Price
    Brand Name : BETT
    Model Number : M19
    Certification : UL,CCC,ROHS,CE,TUV
    Price : Negotiable
    Payment Terms : T/T, Western Union, PayPal, L/C
    Supply Ability : 1000/Day
    Delivery Time : 3-7 Work days
    • Product Details
    • Company Profile

    M19 Male And Female LED Lighting Connectors Plug-In Terminal Blocks For Industrial Equipment Plugs

    M19 male and female plug-in terminal blocks for industrial equipment plugs LED lighting connectors

    Detailed Product Description

    Protection Level:IP68Connecting Model:Wire Connector
    Pin:2 to 5 pinCurrent Rating:16A
    Model:M19Voltage Rating:250V

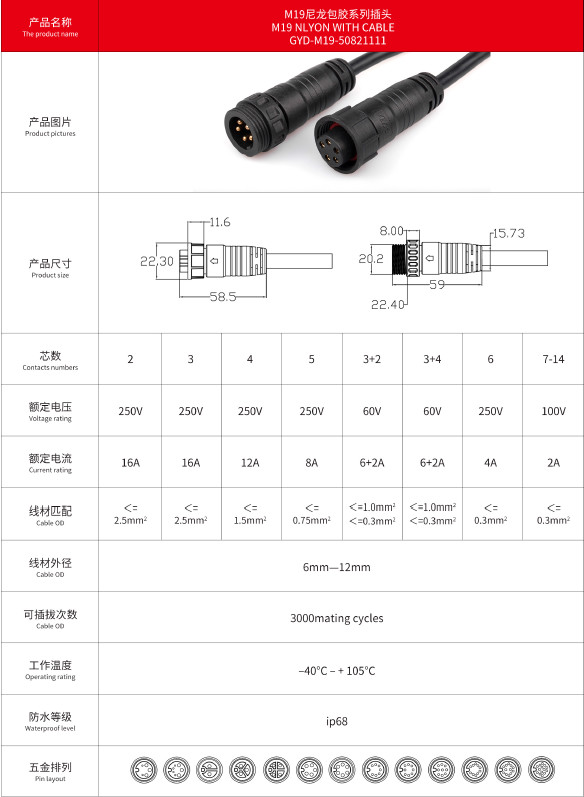

    Description of 2-5 Pole Connector

    M19 big head waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP67. If you are looking for IP67 waterproof connectors, M19 big head connectors will be a perfet choice. it is widely used in many application.

    Operation Parameters
    waterproof levelip68
    Current Rating16A max
    Min Wire Size OD3.0mm ~ 6.5mm
    Max Wire Size OD6.5mm ~ 10mm
    Max.Cable Cross Section Area0.3mm2 ~ 2.5mm2

    M19 Male And Female LED Lighting Connectors Plug-In Terminal Blocks For Industrial Equipment Plugs
    Main characteristics

    • Sealed against dust and fluid (IP67)
    • Vibration resistance,impact resistance,stretching resistance
    • socket with cover
    • Cable assembly support
    • Customized cable size and length


    Applicaiton of Bett M19 big head Connectors

    • Communications Application
    • product coding machines
    • Solar System
    • Electric power equipment
    • Communications equipment
    • Heavy machinery


    FAQ

    1. Q: What type waterproof connector do you have?
    A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

    2. Q:Is the sample avaliable and free?
    A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

    3. Q: Can you assured the quality?
    A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

    4. Q: What’s the terms of payment?
    A: We can accept T/T, LC, Paypal and Western Union

    5. Q: What’s the delivery time?
    A: It depends on the quantity, as usual it will takes 3-5 for small quantity.


    Tips


    1. Proofing: Customers provide samples or provide specifications, and we will make samples according to your samples for confirmation.
    2. Production: Our sample production - the customer confirms that the sample is passed - the customer places an order - our company arranges production
    3. Delivery: The normal delivery time is 5 to 10 days as agreed by both parties.
    4. After-sales: If there is any quality or any other problem with the product, please give us feedback in time, and we will deal with it in time and serve you sincerely.
    5. All products are customized according to customer requirements, quality assurance, samples are welcome to be customized.
