Product Description

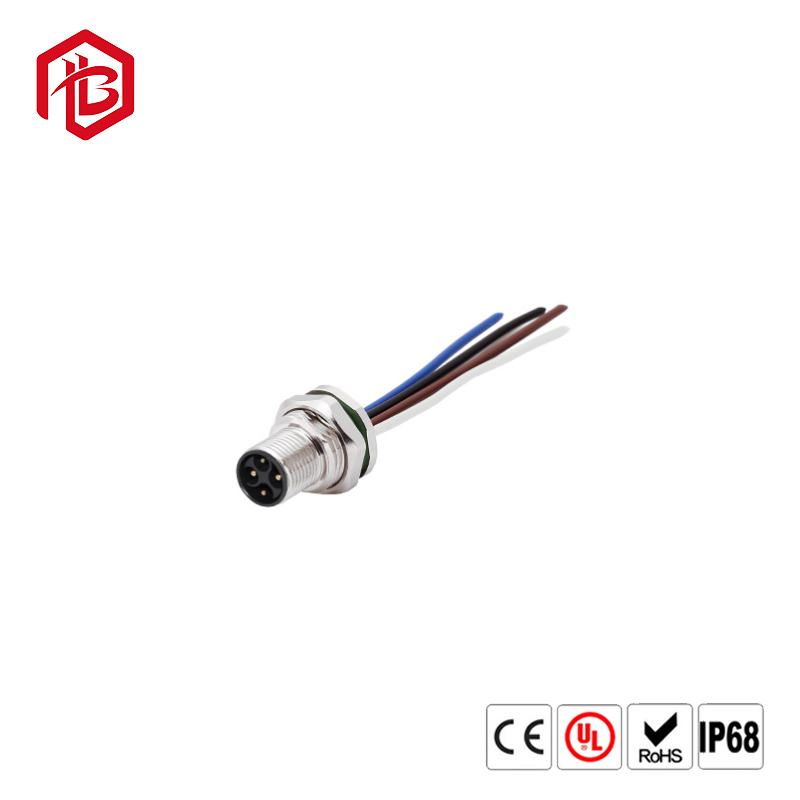

Product Name	IP67 screw waterproof electrical panel mount socket M12 cable connector
Material of contact	CuZn(brass)
Contact plating	Au(gold)
Wire gouge	AWG26-AWG24
Material of contact body	PA
Material of housing	CuZn(brass nickel plated)
Standard	Industrial
Locking system	Screw

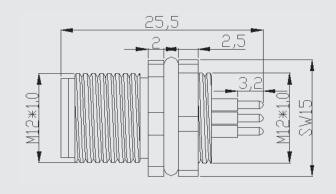

Drawing

Description of 3~8 Pole Connector

Large Flat connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, it will be a perfet option. it is widely used in many application.

Features:​

• Rated current: 20A/10rms.
• 2-4PIN power supply, 5-9PIN signal is optional.
• IP67/68 rating
• Voltage rating: 300V
• Cable Range: 3~11mm
• UL, TUV, CB, CCC, CE, RoHS approved

Main characteristics

• Sealed against dust and fluid (IP68)
• Vibration resistance,impact resistance,stretching resistance
• socket with cover
• Cable assembly support
• Customized cable size and length

Applicaiton of Bett M19 Connectors

• Communications Application
• product coding machines
• Electric power equipment
• Communications equipment

FAQ

1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we have strict QC team, all products will be tested before delivery.

4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union

5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
