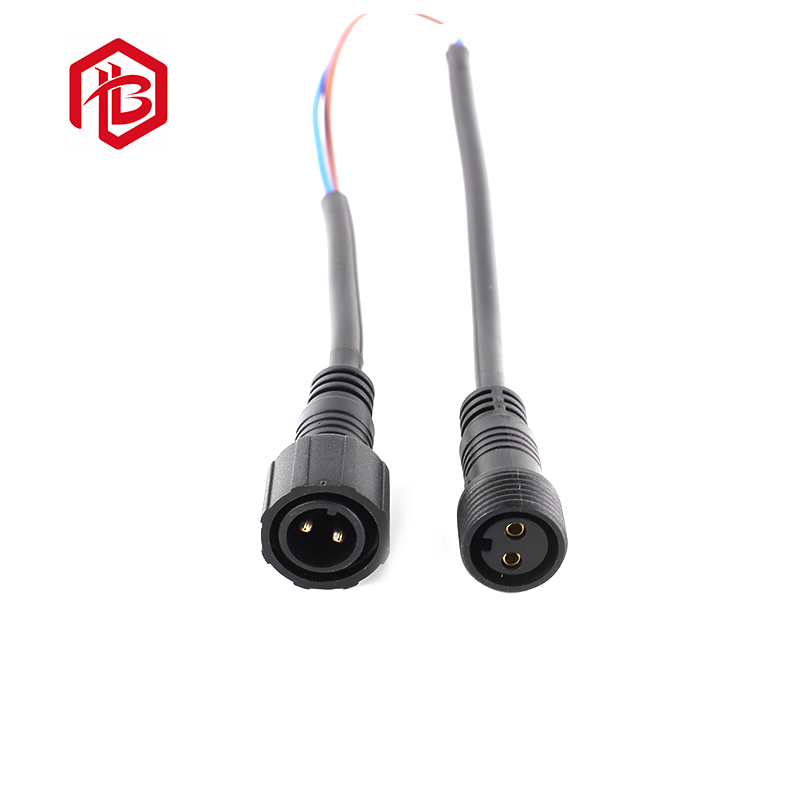

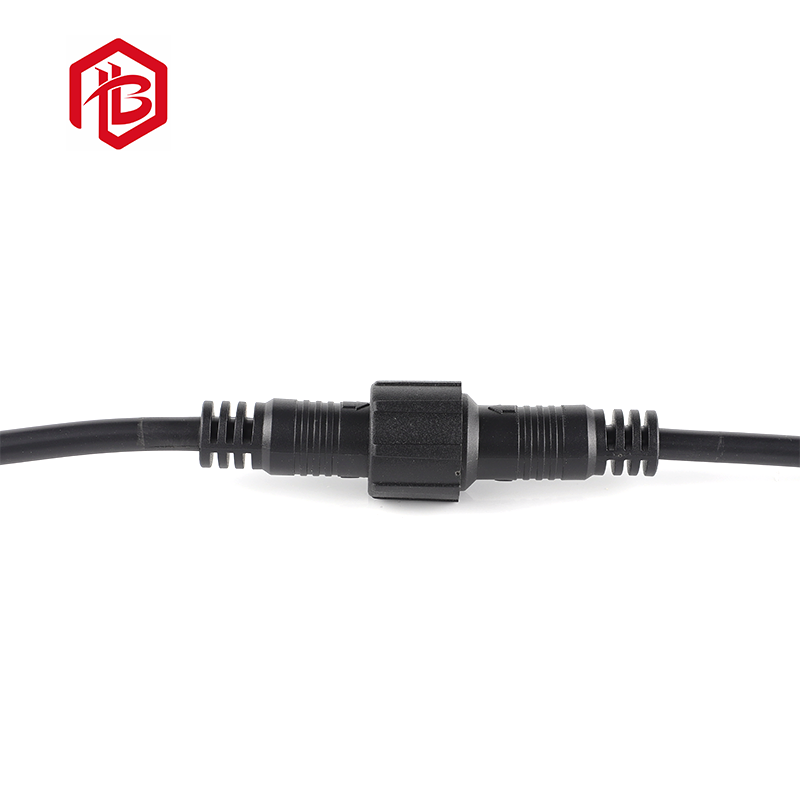

Description of 3 Pole Connector

Screw locking waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP67. If you are looking for IP67 waterproof connectors, screw locking M18 big head connectors will be a perfet option. it is widely used in many application.

Features:​

• Rated current: 20A/10rms.
• 2-4PIN power supply, 5-9PIN signal is optional.
• IP67/68 rating
• Voltage rating: 300V
• Cable Range: 3~11mm
• UL, TUV, CB, CCC, CE, RoHS approved

Main characteristics

• Sealed against dust and fluid (IP68)
• Vibration resistance,impact resistance,stretching resistance
• socket with cover
• Cable assembly support
• Customized cable size and length

FAQ

1. Q: What type waterproof connector do you have?

A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2.Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

3.Q: Can you assured the quality?

A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

4.Q: What’s the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union

5.Q: What’s the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
