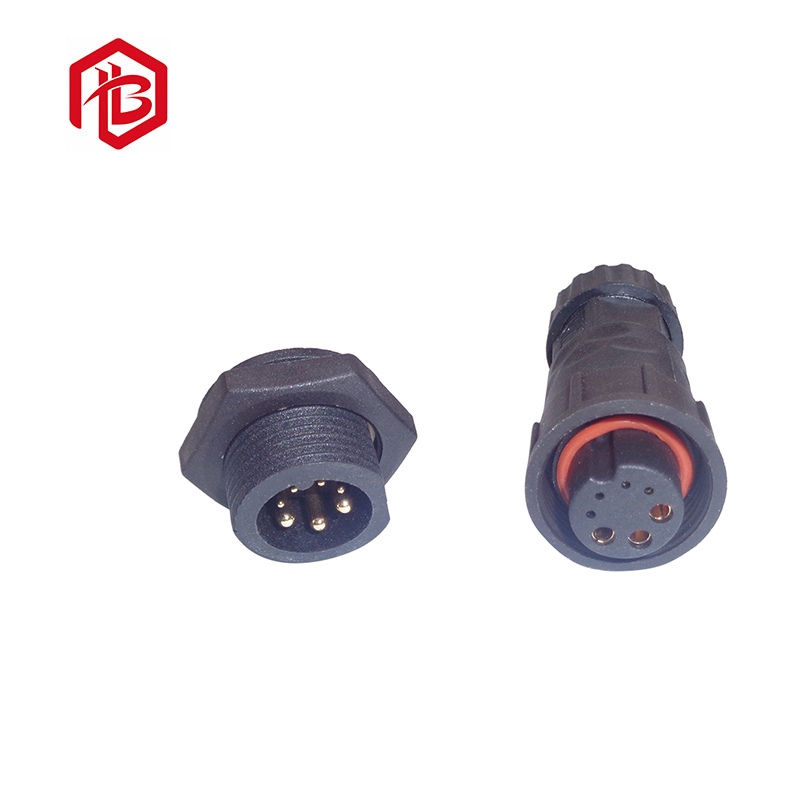

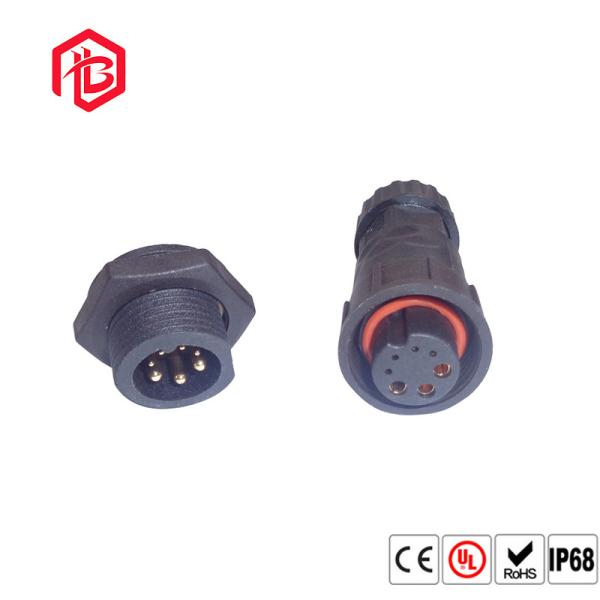

Description of 4Pole Connector
Screw locking waterproof connector is a great choice for your
application, thanks to its thread locking structure, the protection
level could meet IP68. If you are looking for IP68 waterproof
connectors, screw locking K19 connectors will be a perfet option.
it is widely used in many application.
| Cable details |
| Connecting mode: | screw lock |
| Protection level: | IP68 |
| Cable specification: | 1.5mm2 - 2.5mm2(16 - 12AWG ) |
| Diameter range: | Φ4.5mm ~Φ10mm |
| Operating details |
| Current rating(A): | 20A |
| Operating voltage(AC.V.rms): | 300V |
| Temperature rating: | -40°C~105°C |
| Method of connecting cable: | solder |
| Produce type: | splice connectors |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Contact pin: | gold-plated |
Features:
- Rated current: 20A/10rms.
- 2-4PIN power supply, 5-9PIN signal is optional.
- IP67/68 rating
- Voltage rating: 300V
- Cable Range: 3~11mm
- UL, TUV, CB, CCC, CE, RoHS approved
Main characteristics
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
Applicaiton of Bett K19 Connectors
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types
waterproof connector cable.Most of our connector is customized.We
foucs on LED Waterproof connector,Assembly waterproof
connector,Over-mold waterproof connector,T waterproof connector,Y
customized waterproof connector.
2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost
of sample will be refunded after further order.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before
delivery.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small
quantity.
