Widely used for the belowed application:

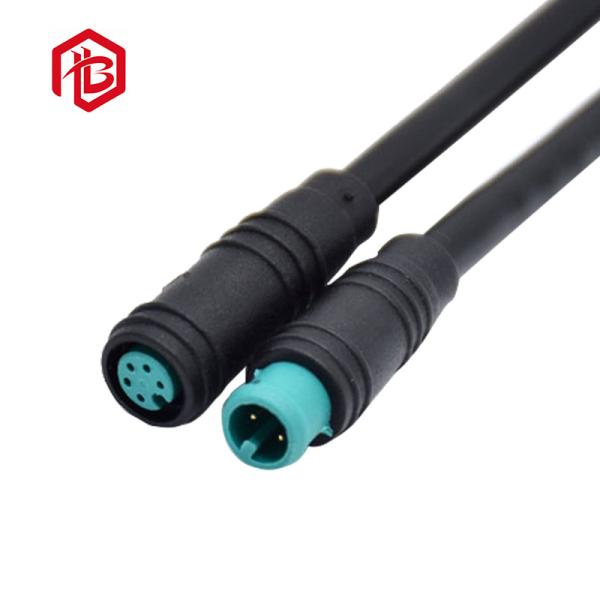

Waterproof M6 connector is a great suitable for E-bike,
Communication Application, Power, Automotive, CCTV, and other
electrical equipment need waterproof joint use. And it posses many
colors, such as blue, red, yellow and so on.
Product Parameter
| Specifications |
| Connecting mode | M6 Waterproof PVC plug |
| Protection level | IP65 |
| Cable specification | 0.2mm2 ~ 0.3mm2 /22-24 AWG |
| Diameter range | Φ3.5 mm ~Φ5 mm |
| Operating Temperature | -20-+80 |
| Current rating(A) | 2-4A |
| Operating voltage | 60-110 V |
| Times of plug | 1500 mating cycles |
Features:
- Rated current: 2-4/10rms.
- 2-4pin power supply, 5-9pin signal is optional.
- IP65 rating
- Voltage rating: 110V
- Cable Range: 3.5~5 mm
- UL, RoHS approved
Main properties
- Sealed against water (IP65)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized pins, material, cable size and length
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types
waterproof connector cable.Most of our connector is customized.We
foucs on LED Waterproof connector,Assembly waterproof
connector,Over-mold waterproof connector,T waterproof connector,Y
customized waterproof connector.
2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost
of sample will be refunded after further order.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip68, UL certification. And we’ve have strict QC team, all products will be tested before
delivery. And you can also visit our factory, warehouse and mould
room.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union.
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small
quantity.
