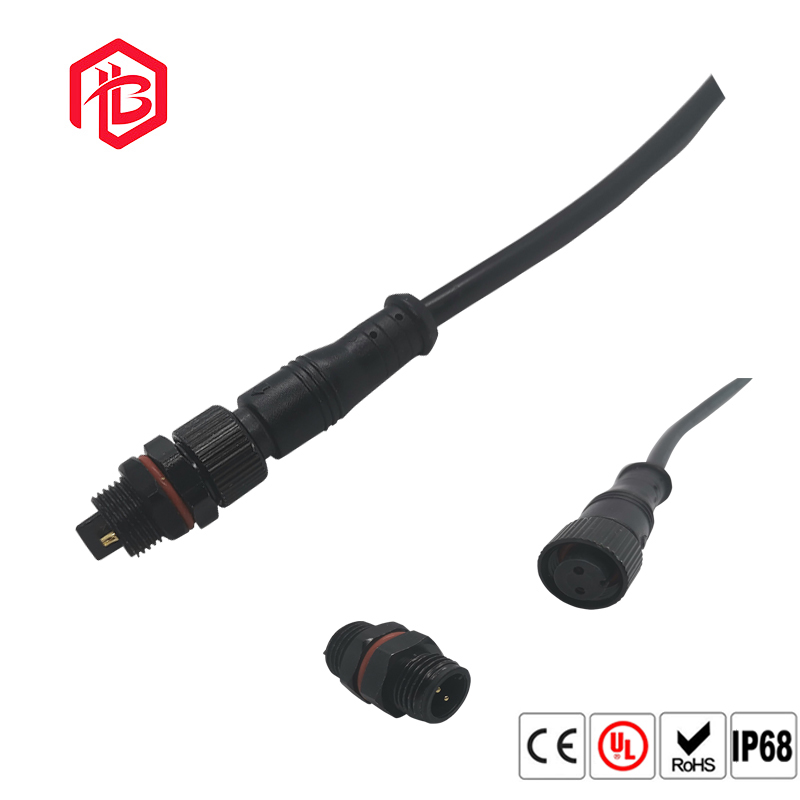

    2 3 4 Pole IP68 Metal M12 Waterproof Plugs And Sockets

    Ask Lasest Price
    Brand Name : Bett
    Model Number : M12 Metal Panel Mount Connector
    Certification : UL,IP,CCC,ROHS
    Price : Negotiable
    Payment Terms : T/T, PayPal, Western Union, L/C
    Supply Ability : 100000 / week
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    2 3 4 Pole IP68 Metal M12 Waterproof Plugs And Sockets

    2 3 4 Pole IP68 Metal M12 Waterproof Plugs And Sockets

    Specification of the M12 metal panel connector

    Protection Level:IP67Connecting Model:panel mount connector M12
    Pin:2 to 9pinCurrent Rating:15A
    Model:Nylon M12Voltage Rating:250V


    Description of 4Pole Connector

    M12 Metal Panel Mount Plugs And Sockets is a good choice for your application, you can try it if you wanna need this type connector, and the panel connector, which can connect your own cable.

    Operation Parameters
    Voltage Rating250VAC max
    Current Rating15Amax
    Min Wire Size OD3.0mm ~ 6.5mm
    Max Wire Size OD6.5mm ~ 10mm
    Max.Cable Cross Section Area0.3mm2 ~ 1.0mm2


    Features:

    • Rated current: 20A/10rms.
    • 2-4PIN power supply, 5-9PIN signal is optional.
    • IP67/68 rating
    • Voltage rating: 300V
    • Cable Range: 3~8mm
    • UL, CCC, CE, RoHS approved

    How to Chosse the correct connectors:

    1. Confirm Current Rating and Number of Contacts
    2. Confirm Assembly style
    3. Confirm Cable Wire guage
    4. Confirm Cable Length and quantity


    Applicaiton of Bett M12 Connectors

    • Communications Application
    • product coding machines
    • industrial inkjet equipment
    • Electric power equipment
    • Laboratory forensic&pathology equipment
    • Communications equipment
    • Heavy machinery


    FAQ

    1. Q: What type waterproof connector do you have?
    A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

    2.Q:Is the sample avaliable and free?
    A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

    3.Q: Can you assured the quality?
    A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

    4.Q: What’s the terms of payment?
    A: We can accept T/T, LC, Paypal and Western Union

    5.Q: What’s the delivery time?
    A: It depends on the quantity, as usual it will takes 3-5 for small quantity.

    6.Q: How to contact with you?
    A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.


    Product Display
