Nylon PVC Low Voltage Waterproof Connector Assembly

Ask Lasest Price
Brand Name :	BETT
Model Number :	Assemble
Certification :	UL，CCC，ROHS，CE，TUV
Price :	Negotiable
Payment Terms :	T/T, Western Union, PayPal, L/C
Supply Ability :	1000/Day
Delivery Time :	3-7 Work days

Add to Cart

Product Details
Company Profile

Nylon PVC Low Voltage Waterproof Connector Assembly

Nylon PVC Low Voltage Waterproof Connector Assembly

Low Voltage Waterproof Connector Assembly of male and female connectors for wires and cables

Description of outdoor electrical wire connectors

This Field Assembly 2 Way waterproof connectors is great for the application which no need soldering, no need male female connecting, easy to install and connect to each other, just by a screw driver, take only a few min. to finish the whole installation process. Will say your time and get a easy good connection.

protaction Level :	ip67	Gender:	male plug famale plug
Model:	Aseembly	Current Rating:	3-7A
core:	2pin	Voltage Rating:	250V

Operation Parameters
Contact/Terminal Material	Gold Plated Brass
Operating Temperature	-20°C ~ +80°C
Seal Material	Silicone
Max Wire Size OD	3.5mm ~ 5.5mm
Max.Cable Cross Section Area	0.3mm2 ~ 1.5mm2

Description:

2pin wire to board waterproof connector
circular outdoor power cable connectors
waterproof cable connector ip67
2pin DC power plug socket
industrial Electrical Plug socket
TUV,UL,CUL,CE approval
Any quantity is welcome
Panl mount connectors: for PCB, for screw fitting or soldering

Main characteristics

Sealed against dust and fluid (IP68)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Cable assembly support
Customized cable size and length

The waterproof Circular connector is the perfect solution to make your own waterproof connection cables easily. Thanks to its screw based terminal, soldering is not required and installation just takes a few minutes.

1. Q:How long time about the delivery?

A: Usually we could arrange shipment witin 7 working days after payment received. If material short of stock, time will be more needed.

2. Q: Can you assured the quality?

A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

3. Q: What’s the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union

4. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

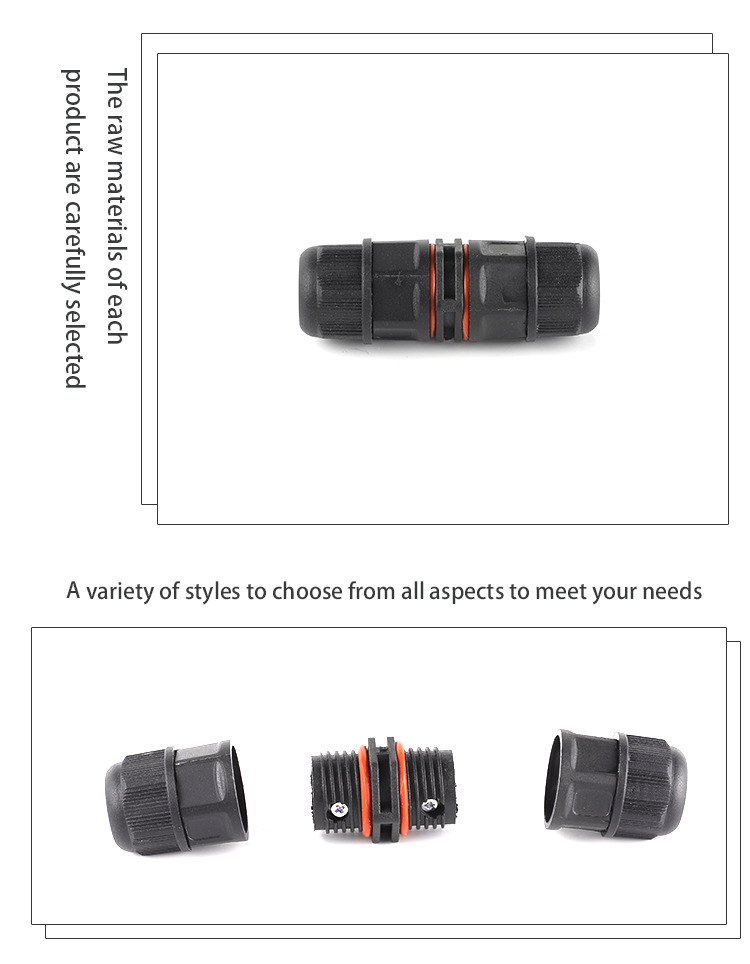

Product Display
