Male Female Y Shaped 20awg Watertight Cable Connector 1 In 3 Out

Ask Lasest Price
Brand Name :	BETT
Model Number :	Y type connecctor
Certification :	UL，CCC，ROHS，CE，
Price :	Negotiable
Payment Terms :	T/T, Western Union, PayPal, L/C
Supply Ability :	1000/Day
Delivery Time :	3-7 Work days

Add to Cart

Product Details
Company Profile

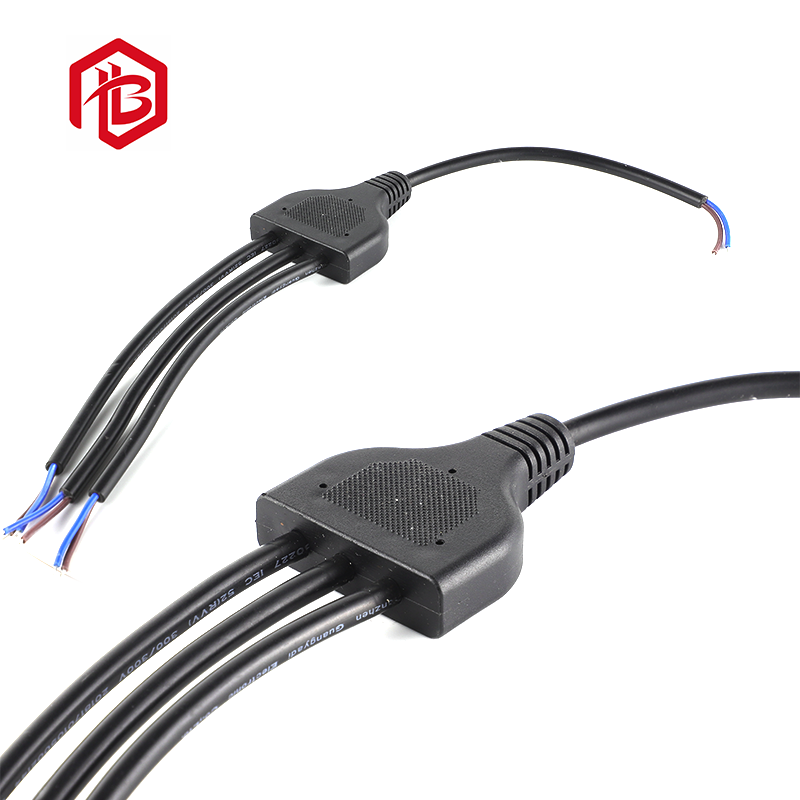

Male Female Y Shaped 20awg Watertight Cable Connector 1 In 3 Out

Male Female Y Shaped 20AWG Watertight Cable Connector 1 In 3 Out

Y Shaped Outdoor Waterproof Connectors With 1 In 3 Out Male Female Connector

Detailed Product Description

Protection Level:	IP67	Product detail:	Y Shaped Outdoor Waterproof Connectors
Pin:	2 to 4 pole	Fuction:	Outdoor Power Connection
cable lenght:	customized	Voltage Rating:	220V

Features

1. Y shaped waterproof connectors

2. Multicore: 2,3,4 pin available

3. Connection method: push locking

4. Dustproof cover available under off-working condition.

5. Certification: UL,RoHS,CE

6. Multi-branches are options, such as 1 to 2, 1 to 3, 1 to 4 ... 1 to 12.

Technical Spec

Connector Model:	Y shaped waterproof connector
Waterproof level:	IP68
Cable specification:	20AWG-12AWG
Cable diameter range:	4.5mm-12mm(18AWG-12AWG)
Core number:	2 pin,3pin,4pin
Rated current (A):	10A
Service	Cable length could be customized

Operation Parameters
waterproof level	ip67/ip68
Current Rating	20 A max
Min Wire Size OD	3.5mm ~ 7.0mm
Max Wire Size OD	4.0mm2 ~ 9.5mm
Max.Cable Cross Section Area	0.3mm2 ~ 2.5mm2

Main characteristics

Sealed against dust and fluid (IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Cable assembly support
Customized cable size and length

FAQ

1. Q:Is the sample avaliable and free?

A: Yes, we can produce by your samples or technical drawings. We can build the molds andfixtures.

2. Q: Can you assured the quality?

A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

3. Q: What’s the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union

4.Q: How to buy your products?

You need to do as followings:

Confirm Current Rating and Number of Contacts

Confirm Assembly style

Confirm Cable Wire guage

Confirm Cable Length and Material.

5.Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once

Product Display
